Product Overview:
This Power Adapter Kit is specially designed for the Zero Breeze Mark 2 battery, ensuring a seamless and efficient charging experience while on the go.
Perfect for outdoor enthusiasts, this kit allows you to charge your Mark 2 battery directly from your vehicle, making it ideal for camping, road trips, and more.
This Power Adapter Kit is specially designed for the Zero Breeze Mark 2 battery, ensuring a seamless and efficient charging experience while on the go.
Perfect for outdoor enthusiasts, this kit allows you to charge your Mark 2 battery directly from your vehicle, making it ideal for camping, road trips, and more.
-

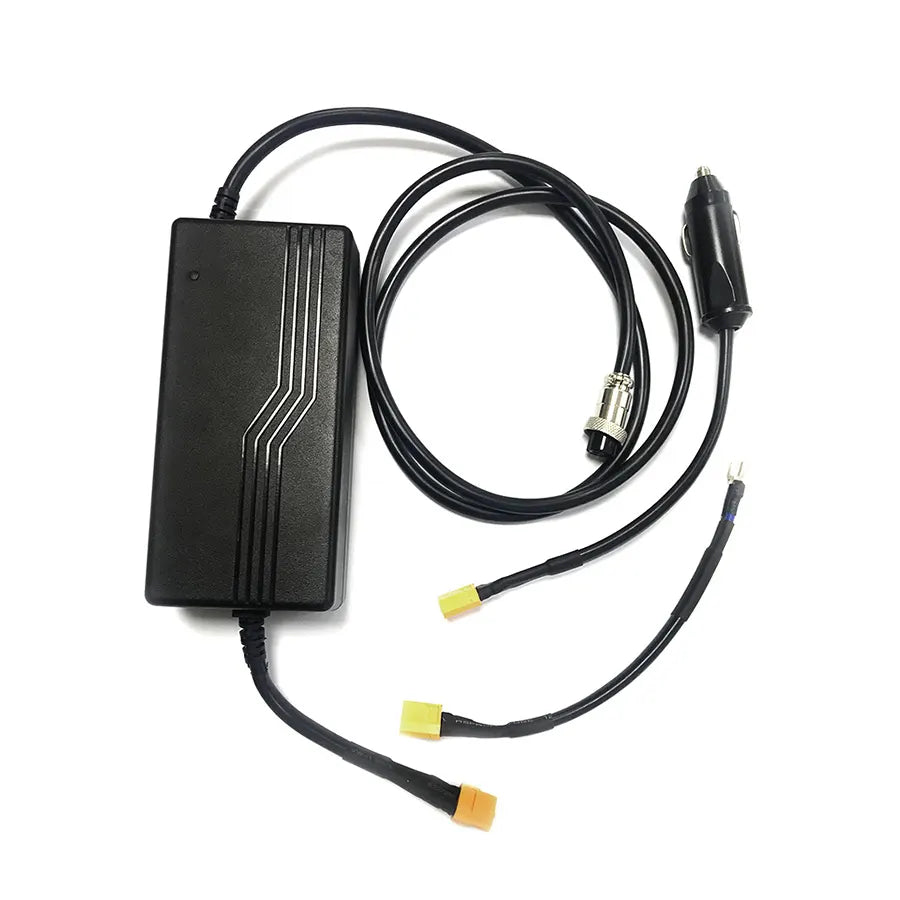

Main Unit (DC-DC Converter):
- Input: 12V to 24V, featuring an XT60 male interface (cable length: 9in / 25 cm)
- Output: GX16-4 aviation connector (cable length: 45in / 115cm)
- Function: Converts 12V from the cigarette lighter to 24V suitable for charging the Mark 2 battery.
-
Cigarette Lighter Connector:
- Input: 12V Male Cigarette plug
- Output: XT60 female interface (cable length: 11in / 30 cm)
- Use: Connects to the main unit for charging the Mark 2 battery via the car’s cigarette lighter.
-
DIY Connector:
- Input: C-type polarized clips
- Output: XT60 female interface (cable length: 11in / 30 cm)
- Use: Allows connection to various other cigarette lighter interfaces or 12V power sources equipped with a 15A fuse.

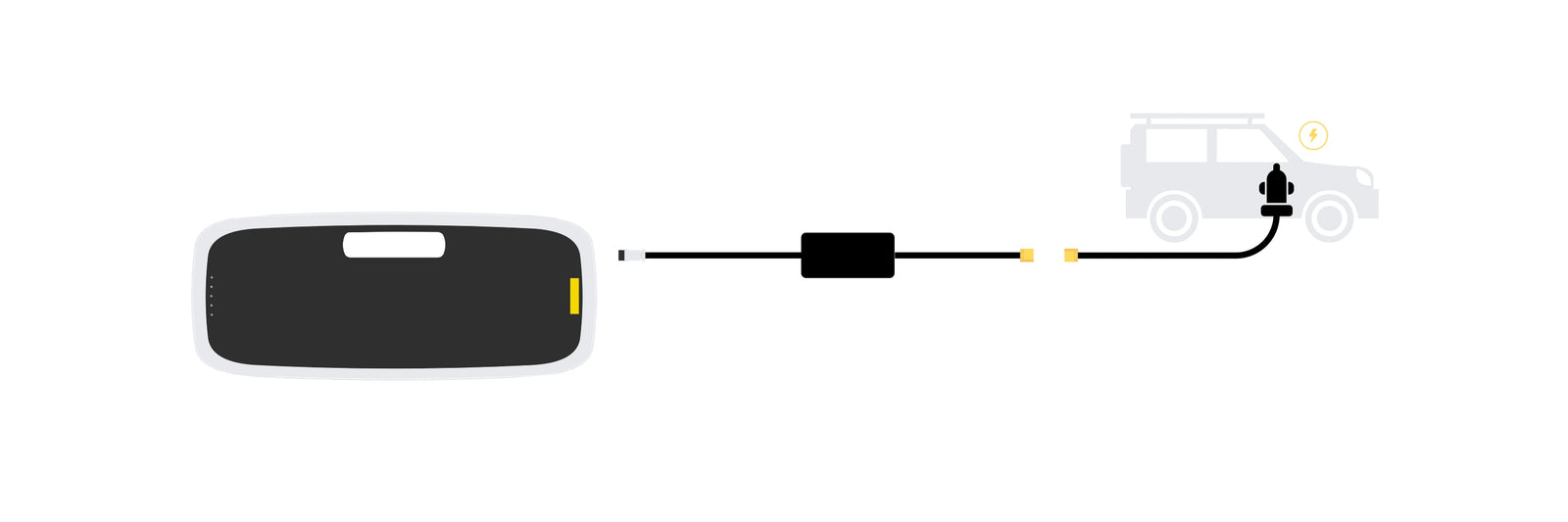

Usage Instructions:
- Connect the Cigarette Lighter Connector's XT60 interface to the main unit.
- Insert the cigarette lighter end into your vehicle’s 12V socket.
- Attach the GX16-4 connector into the Mark 2 battery to start charging.
- Important: The cigarette lighter connection is only for charging the Mark 2 battery and not for powering the Mark 2 air conditioner directly as it could blow the fuse due to excessive current draw.
DIY Connector Usage:
- Ensure the power source is 12V and equipped with a 15A fuse when connecting through the DIY connector to prevent any electrical mishaps.
Additional Applications:
- The 12V to 24V DC-DC converter can also be used to connect other 12V storage batteries, enhancing its versatility across various applications.
Safety Notice:
- Always verify that the interface and power source specifications match the requirements stated to ensure safe and effective operation.
